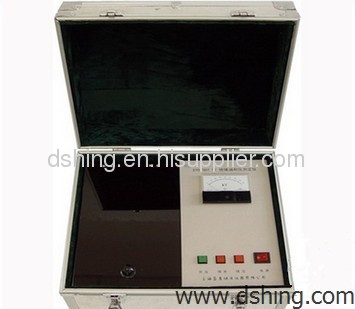

SYD-507 Insulating Oils Breakdown Voltage Tester

Price:	1.0~999.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: woodencase

Production Capacity: 100

Delivery Date: 7

I. Summary
The instrument is designed and made as per the National Standard of People's Republic of China GB/T 507-2002 "Test Methods for Breakdown Voltage of Insulating Oils", Industry Standard of People's Republic of China DL429.9-91, and the characteristics of similar instruments all over the world.
Adopting specially designed solid voltage increasing technologies, the instrument is intuitive, simple and convenient to operate, accurate, beautiful, and it has the reasonable structure, excellent repeatability and low system error. The instrument has been widely used in the fields of railway, aviation, power plant, petroleum, and scientific research institutes, etc to determine the breakdown voltage of insulating oils. It is especially suitable for determination on site.

II. Main technical specifications and parameters
1. Output power: 2000W
2. Measurement range: 0~70 KV
3. Voltage increasing speed: 3 KV±10%/s
4. Distance between electrodes: 2.5 mm
5. Power supply: AC 220 V±10%, 50 Hz
6. Dimension: 330 mm×350 mm×360 mm
