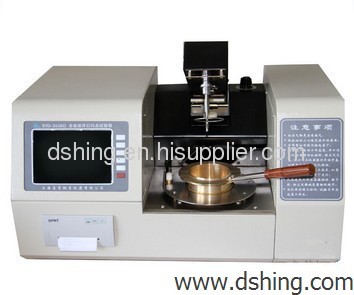

SYD-3536D Fully-automatic Cleveland Open Cup Flash Point Tester

Price:	1.0~999.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: woodencase

Production Capacity: 100

Delivery Date: 7

Brief description:

This instrument is designed and made as per the standards GB/T3536-2008 Test Method for Flash Point and Fire Point of Petroleum Products - Cleveland Open Cup Method, ASTM D92 and ISO 2592. It is suitable to determine the flash point and fire point of petroleum products which the flash point higher than 79 ℃ except fuel oils.

Main technical features

1.This instrument is a kind of fully-automatic instrument wich can do determination for both flash point and fire point.

2.This instrument adopts technology of single chip machine and LCD screen.Full English man-machine dialog interface. It can preset the parameters of expected flash point,sample mark number, atmospheric pressure, test date,etc.It has menu to prompt and input function of guide type.

3.This instrument adopts desktop structure and advanced design.The man-machine interface make it easy to use.And the test result is accurate.It can be widely used in railway,aviation,electric power, petroleum industry and colleges,scientific research institutes,measurement departments to do determination of flash point and fire point for petroleum products.

Main technical specifications and parameters

1.Power supply: AC(220±10%)V, 50Hz

2.Temperature measurement:

Range:room temperature~400℃

Repeatability: ≤8℃

Reproducibility:≤17℃

Accuracy:0.1℃

3.Heating rate:accord with GB/T3536 and ASTM D92

4.Igniting mode:electric ignition, gas flame:3.2mm~4.8mm

5.Ambient temperature:(10~40)℃

6.Relative humidity:≤80%

7.Total power consumption:≤ 500W
