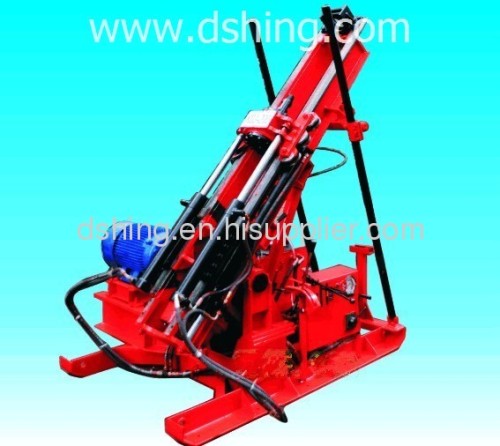

Enlarge KDJ-200 Mechanical Top-drive Head Underground Drilling Rig

KDJ-200 Mechanical Top-drive Head Underground Drilling Rig

Price: 1.0~999.0 USD
Payment Terms: T/T,L/C
Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Means of Transport: Ocean
Packing: woodencase
Production Capacity: 100
Delivery Date: 7

v

 Technical Specifications
Drilling technology
Diamond, PDC rotary drilling; DTH hammerdrilling
Theoretical drilling depth
200m(50 Drill pipe, the final hole diameter65);160m(60 Drill pipe, the final hole diameter 91);
120m (73 Drill pipe, thefinal hole diameter 115)
Drill pipe specifications
Φ50,Φ60,Φ73 Drill pipe; Long 1200 mm(Containing thedrill pipe to take over)
Power head trip
1400 mm
The power head to the forward / pullback speed
0~0.168/ 0~0.344 m/s
Standard power machine
YD180L-8/4 Electric motor(11kW 750 r/min;17kW1500 r/ min)
Output torque of the power head
Forward 1376;840;507;366;287;404;315;221N·m    Reverse 1450;906N·m
The power head rotation speed
Forward 76;152;204;257;366;401;514;732r/min     Reverse 64;129r/min
Rated pressure
12MPa
Dimensions
Mast upright: 1900×1510×2580 mm; Mast level:2555×1510×1110 m
Drilling angle:
0°~360°(Downholemotor rotation direction of pump and power head needs to reverse)
Weight
Machine:1200kg(Excluding power machine)
