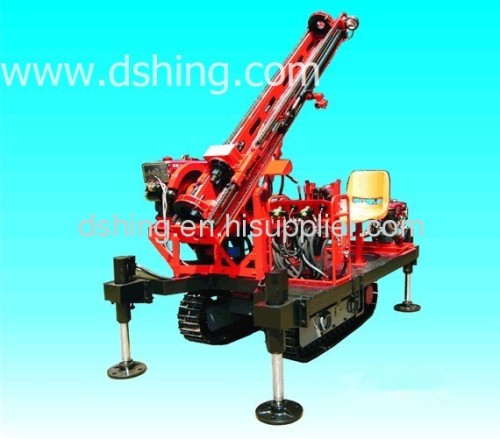

MGJ-50L crawler drill rig for anchoring and jet-grouting

Price:	1.0~999.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: woodencase

Production Capacity: 100

Delivery Date: 7

1.GENERAL DESCRIPTION

    MGJ-50L crawler drill rig for anchoring and jet-grouting is a type of integration of crawler,     mud pump and control panel based on original MGJ-50 drill rig for anchoring and jet-grouting.
    It features long feed stroke, large capacity, easy to operate and move etc. It is better idea     anchoring drill rig for anchoring bar, consolidating and strengthening engineering and all     other engineering geological drilling.
    The drilling rig is mainly used in soil and rock anchoring, consolidation of road base, dam     base and retaining wall, and blasting hole drilling and jet-grouting.
2.The drill rig features:
    1).The drill rig is with mechanical transmission and hydraulic feed, drill hole dia. is mainly     110—130mm(can reach 180mm), drilling capacity 60 m, can drill at any angle between horizontal     and vertical.
    2).Long feeding stroke reaching 2300 mm with 2 m drill rod.
    3).Using with rotation drilling and percussion –rotation drilling, drill efficiently.
    4).Support cylinder, it is easy to adjust the angle of the mast.
    5).With crawler, it is easy and fast to find out the drill hole position.

Light weight, good detachability, easy to move, assembly and maintain.

Technical Specifications

1 Power unit
Diesel engine	ZS111515 kW 2200 r/min
2 Base pre-meter
Drilling hole dia	130mm mainly (can reach 180 mm)
Drilling capacity	60m
Drilling angle	anyangle between vertical and horizontal
Drill rod	Φ50mm or Φ73mm; length 2 m
Rated pull force:	22kN
Rated push force:	14.6kN
Lifting speed:	0.259m/s
Max. torque:	2984N·m
3 Top-drive head:
Type:	mechanicaltop-drive head
Stroke:	2300mm; 1500 mm (shorter mast type); 800 mm (the shortest mast type)
Speed:	48;88; 162; 281 r/min,reverse speed: 39r/min
4 Oil pump
Model:	CBK1020/8-396R
Flow:	20+8.1mL/r
Rate speed:	1500 r/min
Max. pressure:	8MPa
Working pressure:	16MPa
5 crawler
Model:	DP101CT
Max. tow force:	27.5KN
Crawling speed:	1.17km/h
Crawling angle:	lessthan 30°
6 Mud pump
Model:	BW120QF
7 Overall dimension
Drilling vertical hole:		L×W×H 3130×1920×4090
Drillinghorizontal hole (transportation state)		L×W×H 3550×1920×1820
8 Weight of drill body
excluding the power unit:		900Kg
Whole weight:		2850kg
